| Place of Origin: | CHINA |
|---|---|
| Brand Name: | FORZATEC |
| Certification: | CE&ROHS |

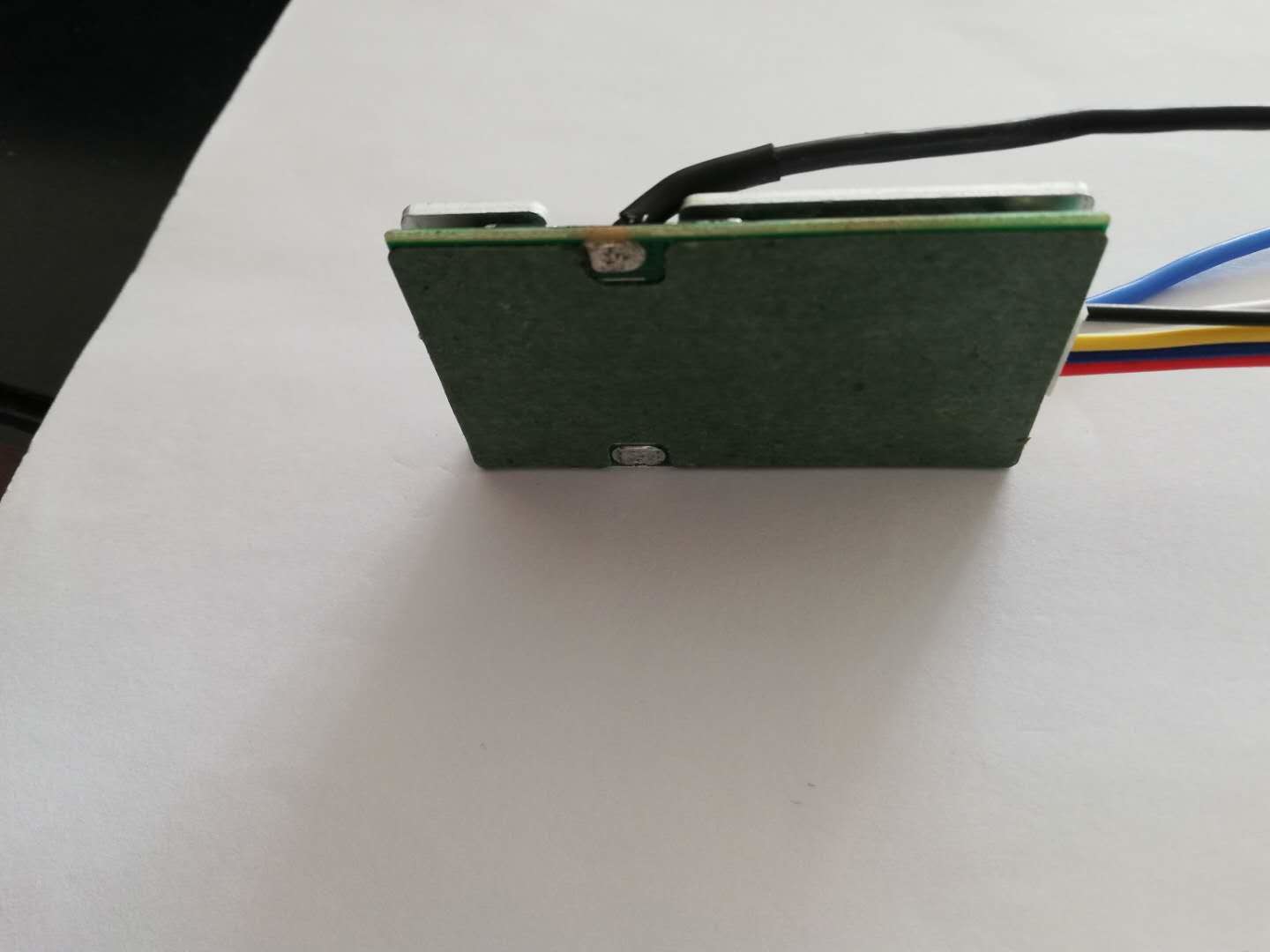

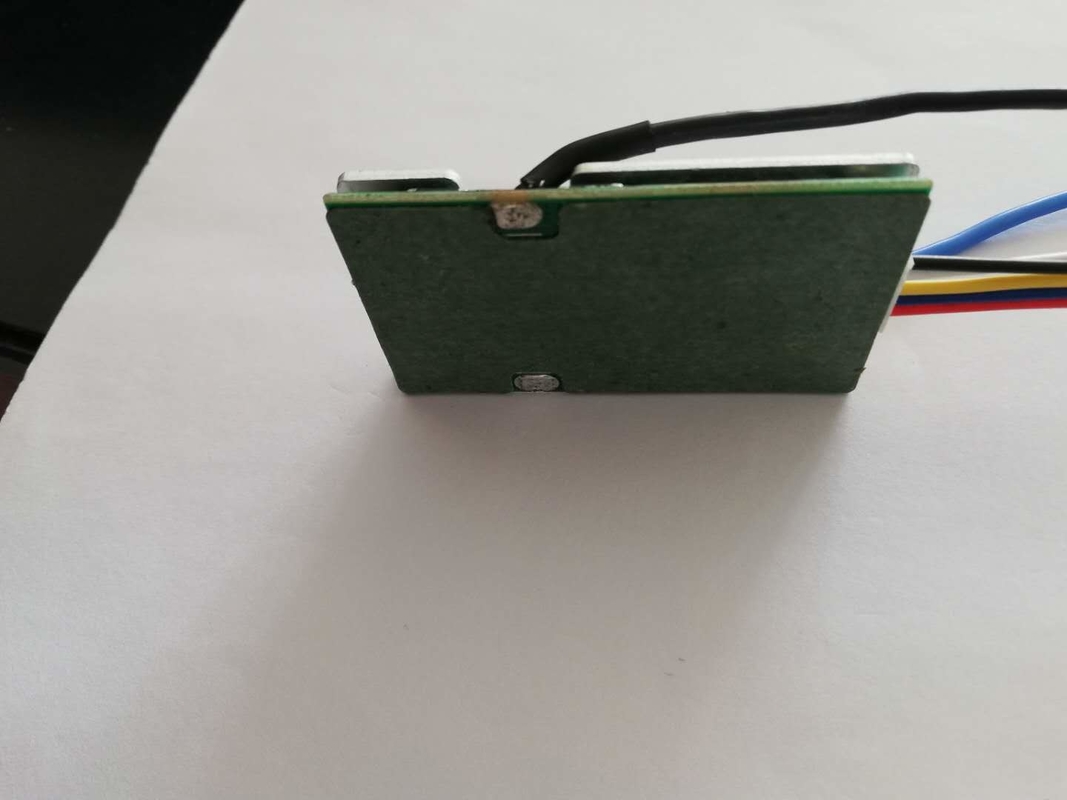

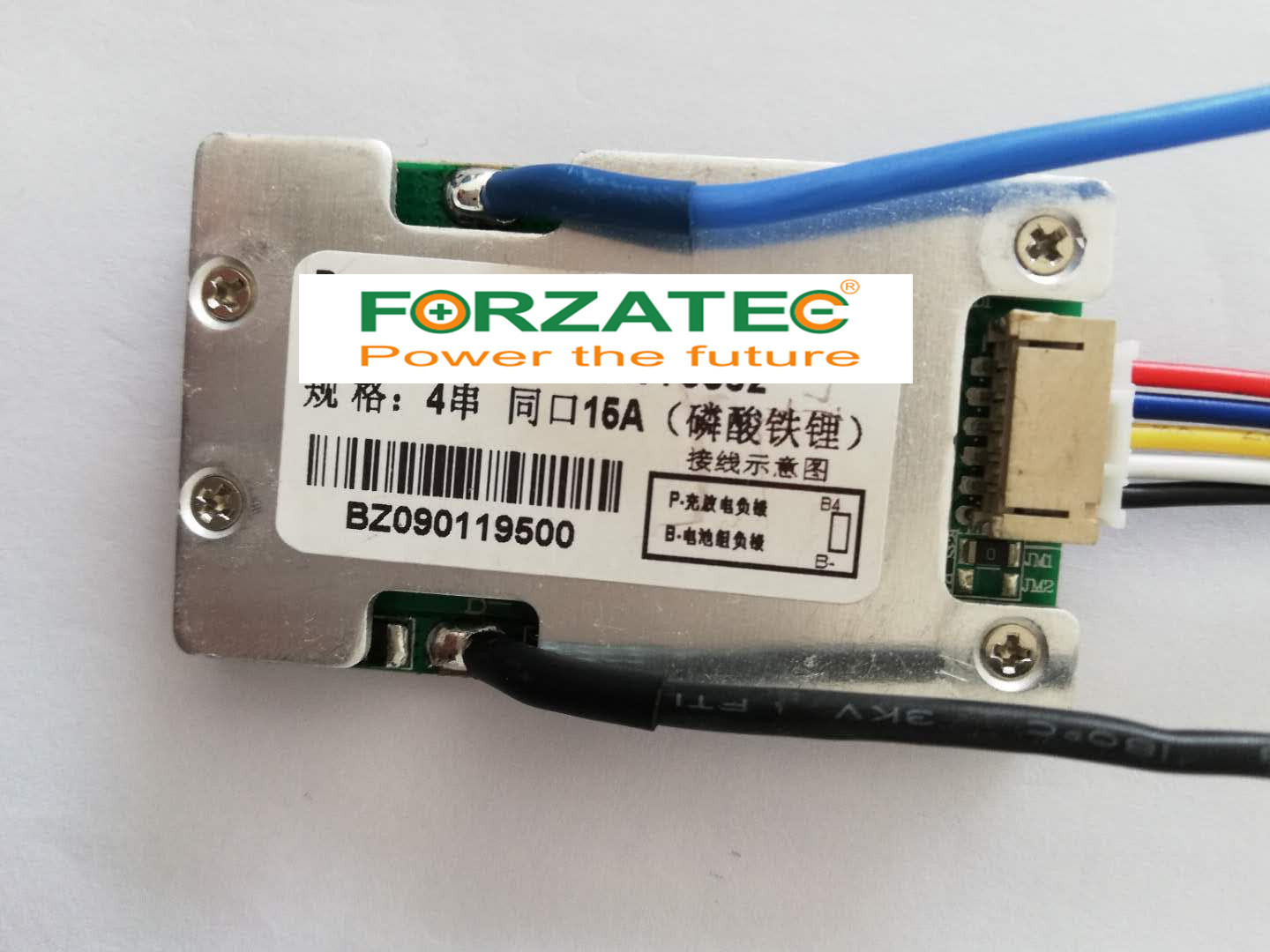

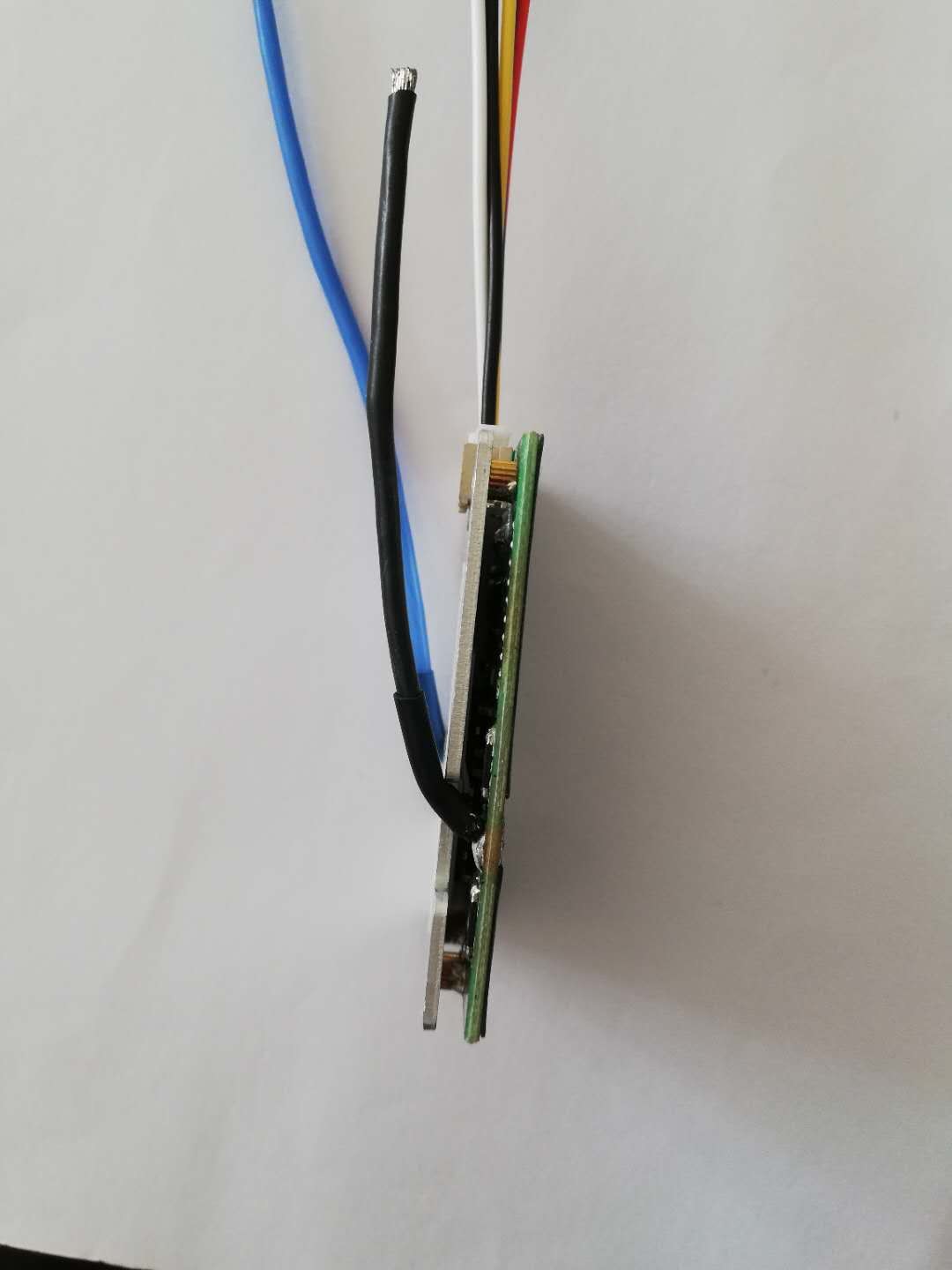

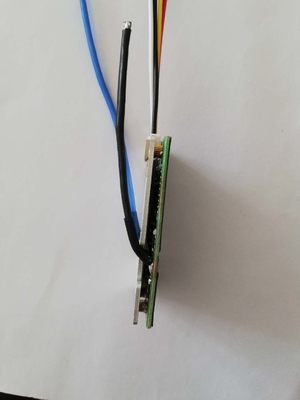

| Model Number: | FT-4S16A |
| Minimum Order Quantity: | 100 |
| Packaging Details: | paper carton + pallet |
| Delivery Time: | 15 DAYS |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10,000 PER MONTH |
| High Light: | lithium ion battery charger,battery pack charger |
||
|---|---|---|---|
| Test items | Details | Min | Standard | Max | |
| 1 | Chargingparameters | Over-charge voltage protection | 3.60V | 3.65V | 3.70V |
| Over-charge voltage protection delay time | 0.5S | 1.0S | 1.5S | ||
| Over-charge voltage protection release | 3.50V | 3.55V | 3.60V | ||
| Charging current | / | / | ≤10A | ||
| 2 | Discharging parameters | Over-discharge voltage protection | 2.25V | 2.35V | 2.45V |
| Over-discharge voltage protection delay time | 0.5S | 1.0S | 1.5S | ||
| Over-charge voltage protection release | 2.45V | 2.55V | 2.60V | ||
| Output continuous discharging current | / | / | ≤16A | ||
| Over discharg current protection | 25A | 30A | 35A | ||
| Over discharge current protection delay time | 0.5S | 1.0S | 1.5S | ||
|
Short circuit protection release |
Remove load | ||||
| 3 | Temperature protection | Charging low temperature protection | / | / | / |
| Charging over temperature protection | 60℃ | 65℃ | 70℃ | ||
| Over temperature protection recovery in discharging mode | 45±8℃ | ||||
| Discharging over temperature protection | 60℃ | 65℃ | 70℃ | ||
| Overtemperature protection recovery in charging mode | 45±8℃ | ||||
| MOS over temperature protection | 85±5℃ | ||||
| 4 | Balanced function | Balancing start point | 3.55V | ||
| Balancing current | 35mA | 40mA | 45mA | ||
| 5 | Maximun main loop electrical resistance | ≤50mΩ | |||
| 6 | Idle mode | ≤45μA | |||
