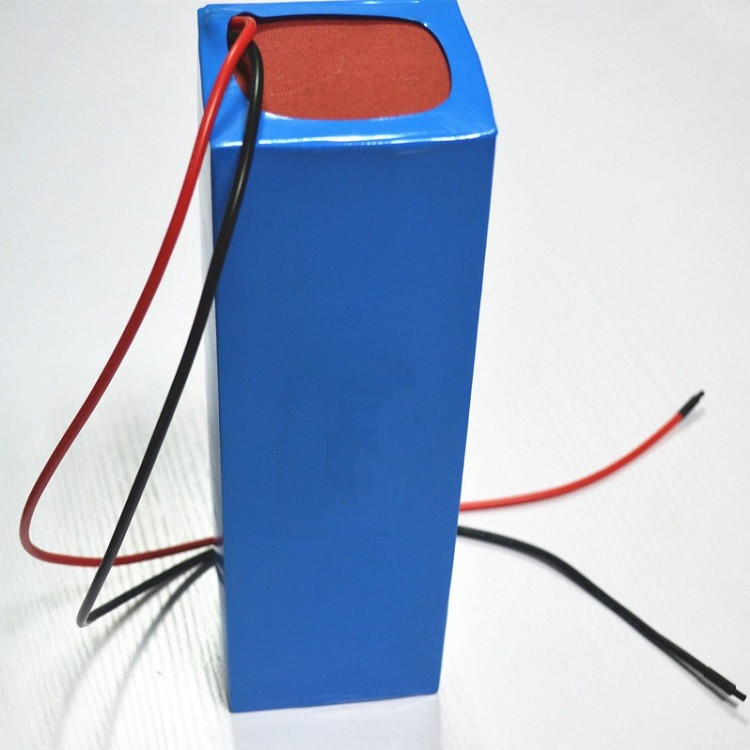

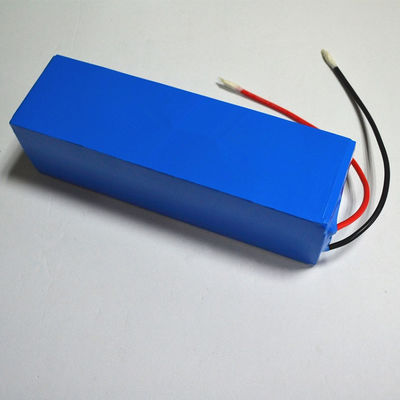

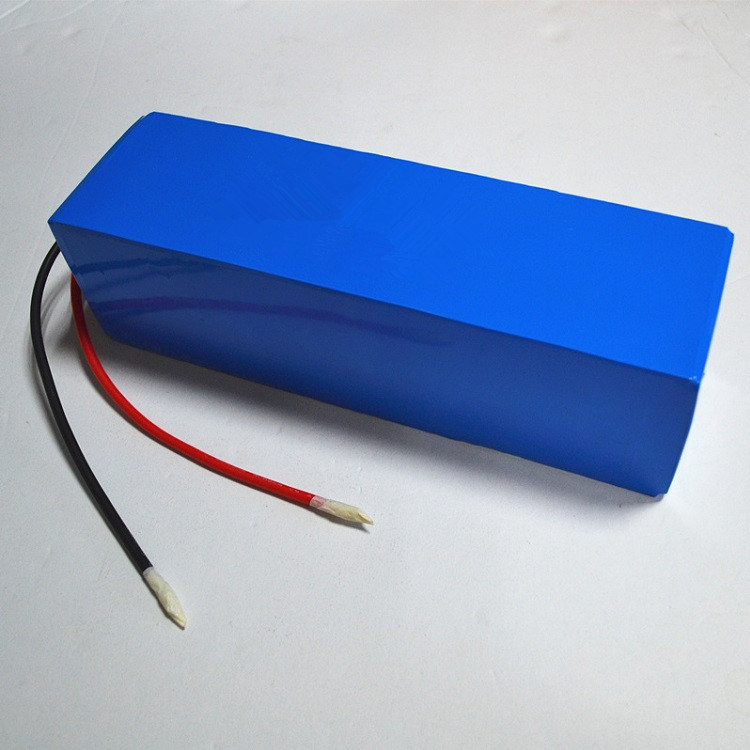

24Ah IP65 Solar Street Light Life 12 Volt Lifepo4 Battery Cycle > 2000 Times

Basic Information
Place of Origin: CHINA
Brand Name: FORZATEC
Certification: CE ROHS
Model Number: FT-LFP-12-24
Minimum Order Quantity: 50 PCS
Packaging Details: CARTON AND PALLETS
Delivery Time: 15 DAYS UPON ORDER
Payment Terms: T/T
Supply Ability: 100K PER MONTH
Detail Information
Battery Type: Lifepo4 Nominal Voltage: 12.8V
Nominal Capacity: ≥24Ah (Test Condition @ 0.3C, 25°C) Charge Cut-off Voltage: 14.6V
Discharge Cut-off Voltage: 10.8V Self-discharge: < 3% Per Month
Battery Pack Size: 128*70*128mm Weight: 2.5kg
High Light:

lifepo4 lithium battery

,

lifepo4 battery pack


Product Description

12V24Ah Lifepo4 Lithium Ion Battery IP65 solar street light Long life cycle:> 2000 times
Product Description
Feature
1. Safety: safest Lithium battery, CE UL approved, built-in PCM/BMS
2. Clean and Green energy, no toxic material contained
3. Long life cycle:> 2000 times, 6-8 times of lead acid battery
4. No memory effect, highly efficient, charge anytime
5. Small size and light weight: 1/2 size& weight of lead acid battery
6. Good performance at high temperature
7. Low self-discharge rate: < 3% monthly



Electrical Characteristics Nominal Voltage 12.8V
Nominal Capacity 24Ah
Energy 300Wh
Internal Resistance ≤10mΩ
Cycle Life >2000 cycles@1C 100% DOD
Months Self Discharge <3%
Efficiency of Charge 100%@0.5C
Efficiency of Discharge 96-99% @1C
Standard Charge Charge Cut-off Voltage 14.6±0.2V
Charge Mode 0.2C to 14.6V, then 14.6V charge current to 0.02C(CC/CV)
Standard Charge Current 4A
Max. Charge Current 20A
Standard Discharge Continuous Current 20A
Max. Pulse Current 40A(10S)
Discharge Cut-off Voltage 10V
Environmental Charge Temperature 0℃ to 45℃(32F to 113F)@60±25% Relative Humidity
Discharge Temperature -20℃ to 60℃(-4F to 140F)@60±25% Relative Humidity
Storage Temperature 0℃ to 40℃(32F to 104F)@60±25% Relative Humidity
Water Dust Resistance IP65
Mechanical Cell&Method 4S
Plastic Case
Dimensions(in./mm.) Customized size
Weight(lbs./kg.) 2.5kg
Terminal M6
Display screen Option
Bluetooth Option
