| Place of Origin: | China |
|---|---|
| Brand Name: | FORZATEC |
| Certification: | CE ROHS |
| Model Number: | FT-32700-6Ah |
| Minimum Order Quantity: | 10,000 |
| Packaging Details: | Carton + Pallet |
| Delivery Time: | 7 days |
| Supply Ability: | 1,000,000 per month |
| Model: | 32650 | Diameter,d: | 32.00±1mm |
|---|---|---|---|
| Height,h: | 70.00±5mm | Mass: | 147g ±3(Approx) |
| Nominal Voltage: | 3.2V | Name: | Lithium Iron Phosphate Battery Safety |
| Charge Operating Temperature: | 0°C~45°C | ||
| High Light: | 3.2V 6000mAh Li ion Battery Cell,LiFePO4 32650 Li ion Battery Cell,UPS Power System 32700 |
||

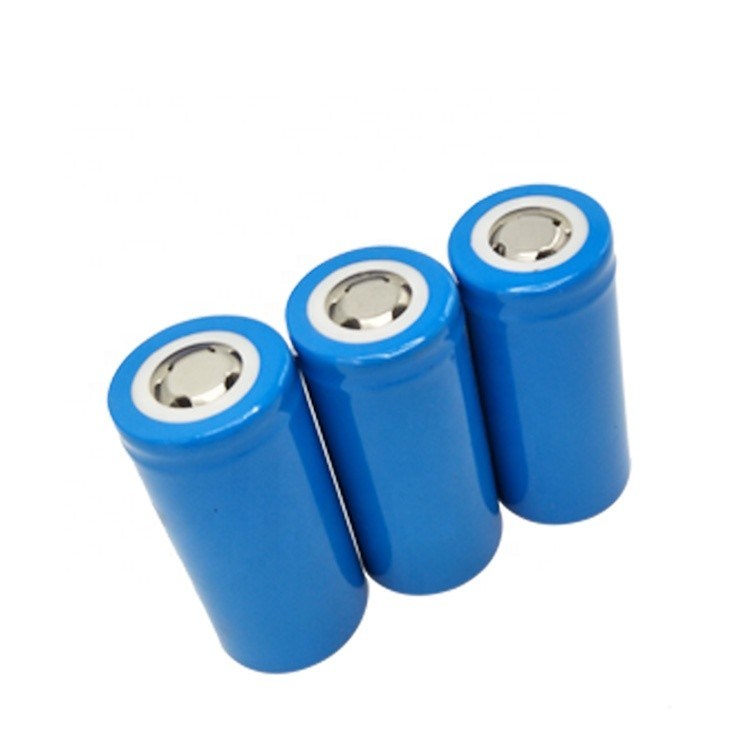

2 Years Warranty Rechargeable LiFePO4 32650 32700 3.2V 6000mAh Li ion Battery Cell for UPS / Solar Power System
Main Application
1. EV/PHEV
2. UPS
3. Storage energy
4. Starts power supply
5. Other application
Product Specification
| Benefits | Electrical characteristics | |
| 1.Attractive cycle life | Nominal voltage | 3.2v |
| 2.Extended safety performance | Rated capacity | 6.0Ah |
| 3.Wide operating temperature range | Impedance (Max.at 1000Hz) | <10mΩ |
| 4.Unrivalled high temperature performance | Cycle life (1C/1C 100% DOD) | 2000cycles |
| Physical chracteristics | ||
| Key features | Diameter | 32.2±0.5mm |
|
1.Sturdy and pressure resistant steel envelope |
Height | 69.8±0.2mm |
| 2.High capacity | Weight | Approx 145g |
| 3.Steady output voltage | Operation conditions | |
| 4.Little self-discharge | Charge method |
Constant current/Constan voltage |
| 5.Double safety protection | Standard charge and discharge current | 1A |
|
6.Withstanding very high level of vibrations and shocks. |
Max.charge voltage | 3.65v |
| Max.continuous charge current | 5A | |
| Main application | Charge temperature range | 0℃ to 60℃ |
| 1.EV/PHEV | Max.continuous discharge current | 12.5A |
| 2.UPS | Max.instant discharge current | 30A |
| 3.Storage energy | Max.instant discharge time | 10s |
| 4.Starts power supply | Discharge cut-off voltage | 2.5v |
| 5.Other application | Discharge temperature range | -20℃ to 60℃ |
