| Place of Origin: | CHINA |
|---|---|
| Brand Name: | FORZATEC |
| Certification: | CE ROHS |
| Model Number: | FT-LFP-12-25 |
| Minimum Order Quantity: | 200 PCS |
| Packaging Details: | CARTON AND PALLETS |
| Delivery Time: | 15 DAYS UPON ORDER |
| Payment Terms: | T/T |
| Supply Ability: | 100K PER MONTH |
| Battery Type: | Lifepo4 | Nominal Voltage: | 12.8V |
|---|---|---|---|
| Nominal Capacity: | ≥25Ah (Test Condition @ 0.3C, 25°C) | Charge Cut-off Voltage: | 14.6V |
| Discharge Cut-off Voltage: | 10.8V | Self-discharge: | < 3% Per Month |
| High Light: | lifepo4 lithium battery,lifepo4 battery pack |
||

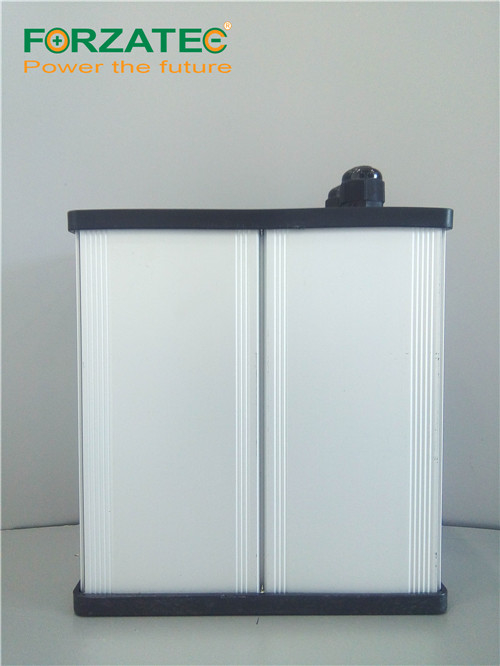

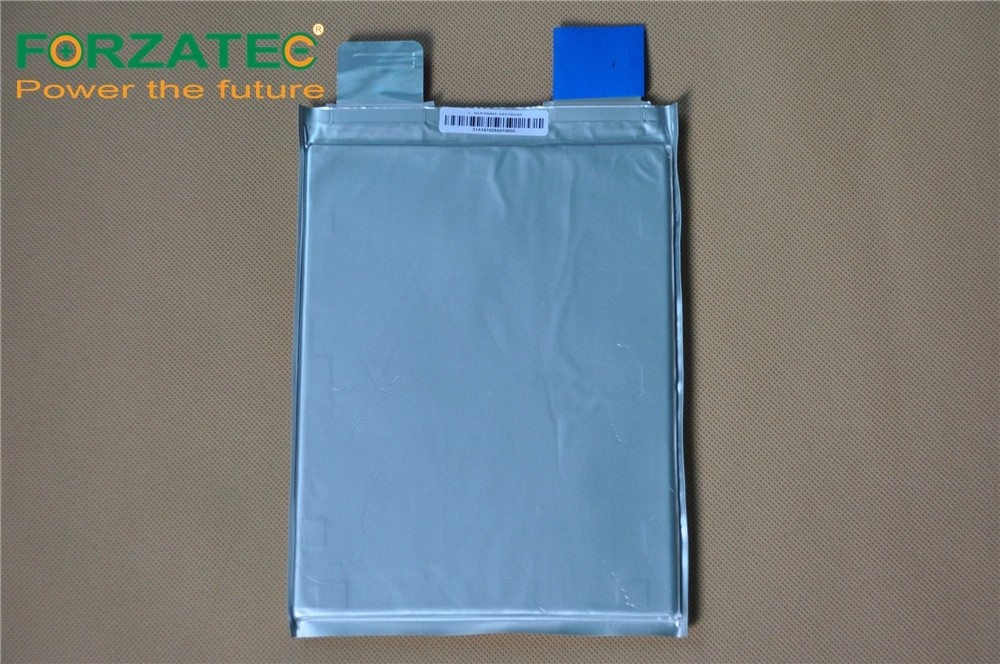

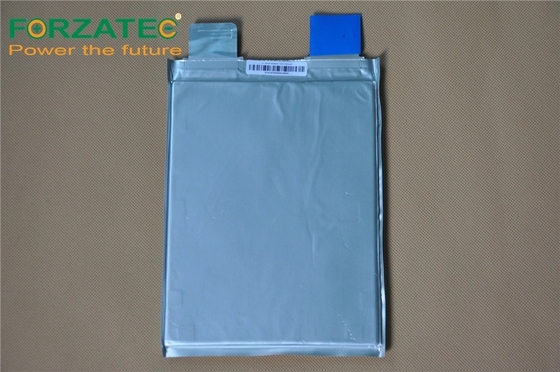

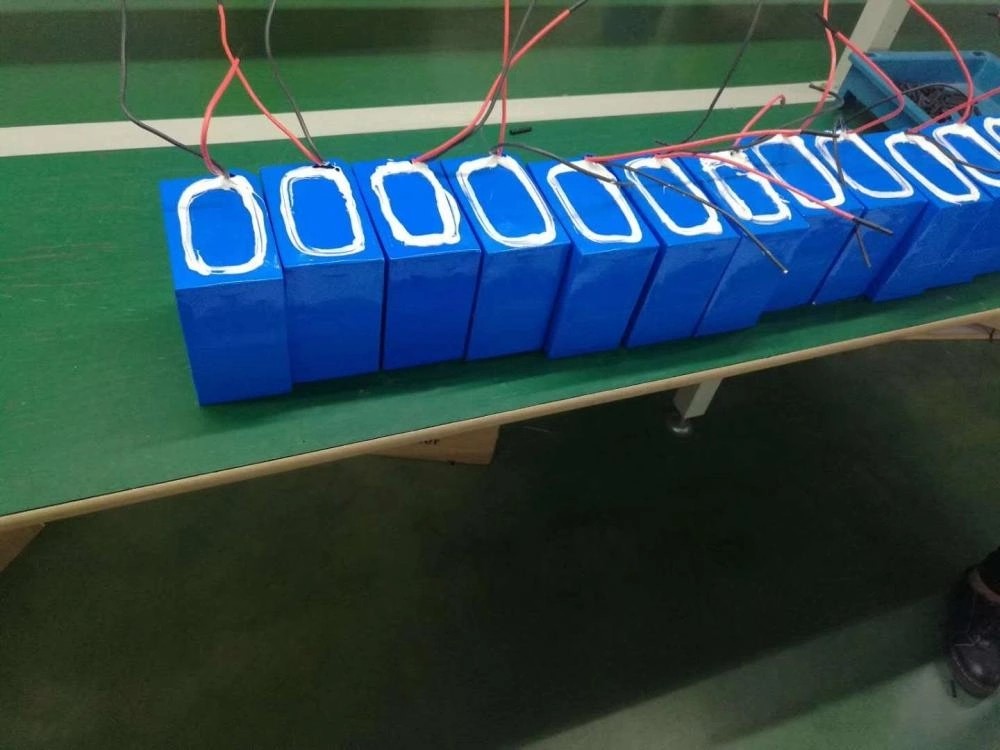

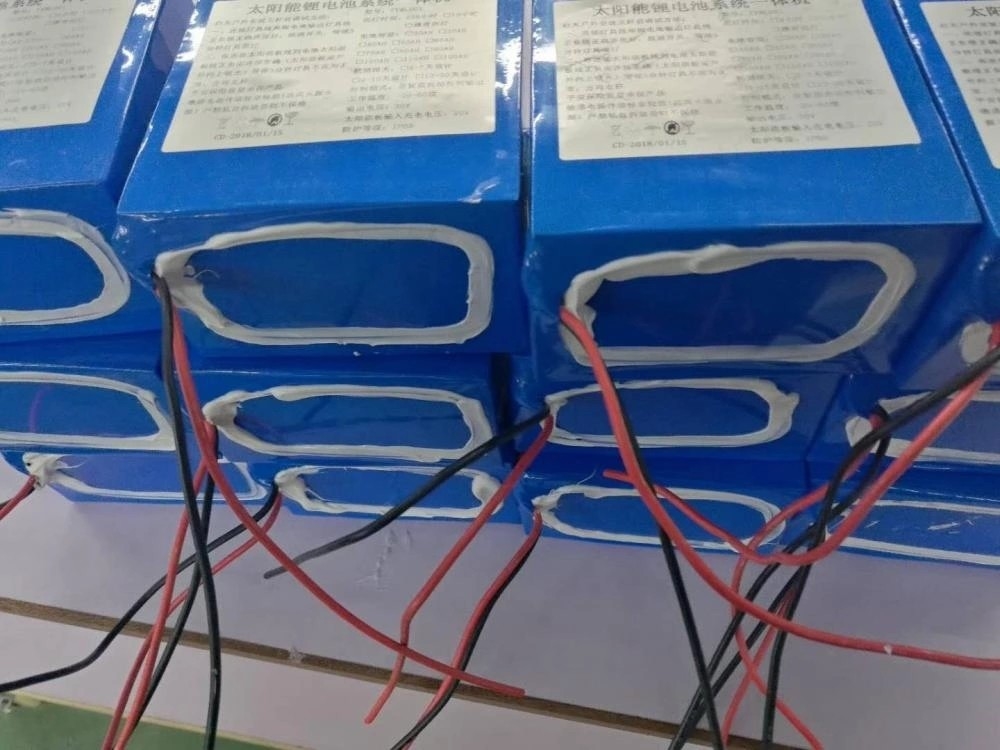

12V25AH LiFePO4 lithium-ion battery works perfectly as ESS for solar lighting systems with light output from 10W to 25W. Forzatec is dedicated to supplying integrated energy storage solutions for energy storage applications, such as off-grid solar system, Solar Street Light, Solar Garden Light etc. We use large capacity pouch LiFePO4 cells in parallel to increase the whole battery pack's capacity, then series configure those modules to rise voltage for customer's requirements. we also offer battery management systems, Inverters and technical supports for our customers. 12V25AH Lithium Ferric Phosphate Accumulator match solar street light with height ranging from 4 - 6 meters perfectly.
Capacity
Rated Capacity :25Ah
Rated Voltage 12.8V
Internal Resistant ≤60mΩ
Discharge End Voltage 9.6V
Charge Upper Limit Voltage 14.6±0.2V
Standard Charge Circuit 5 A
Fast Charge Circuit 10 A
Standard Discharge Circuit 5 A
Fast Discharge Circuit 10A
Discharge Circuit (max) 10A
Weight 2.8kg±0.1kg
Dimension(max)
Length : 44mm
Width : 133mm
Height : 200mm
Operational Temperature
charge :0 ~ 45℃;
discharge :-20 ~ 60℃
Storage Temperature
within a month : -5 ~ 35℃
within six months : 0 ~ 35℃
