| Place of Origin: | CHINA |
|---|---|
| Brand Name: | FORZATEC |
| Certification: | CE ROHS |
| Model Number: | FT-LMO-12-75 |
| Minimum Order Quantity: | 200 PCS |
| Packaging Details: | CARTON AND PALLETS |
| Delivery Time: | 15 DAYS UPON ORDER |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 packs per month |
| Type: | LMO | Connection Mode: | Series And Parallel |
|---|---|---|---|
| Nominal Voltage: | 11.1V | Nominal Capacity: | ≥75Ah (Test Condition @ 0.3C, 25°C) |
| Charge Cut-off Voltage: | 12.6V | Discharge Cut-off Voltage: | 8.4V |
| Battery Packing: | Aluminum Box | ||
| High Light: | lmo lithium ion battery,large capacity lithium ion battery |
||
12V75Ah LMO Lithium Ion Battery Solar Street Light Power Storage Solar Garden Light

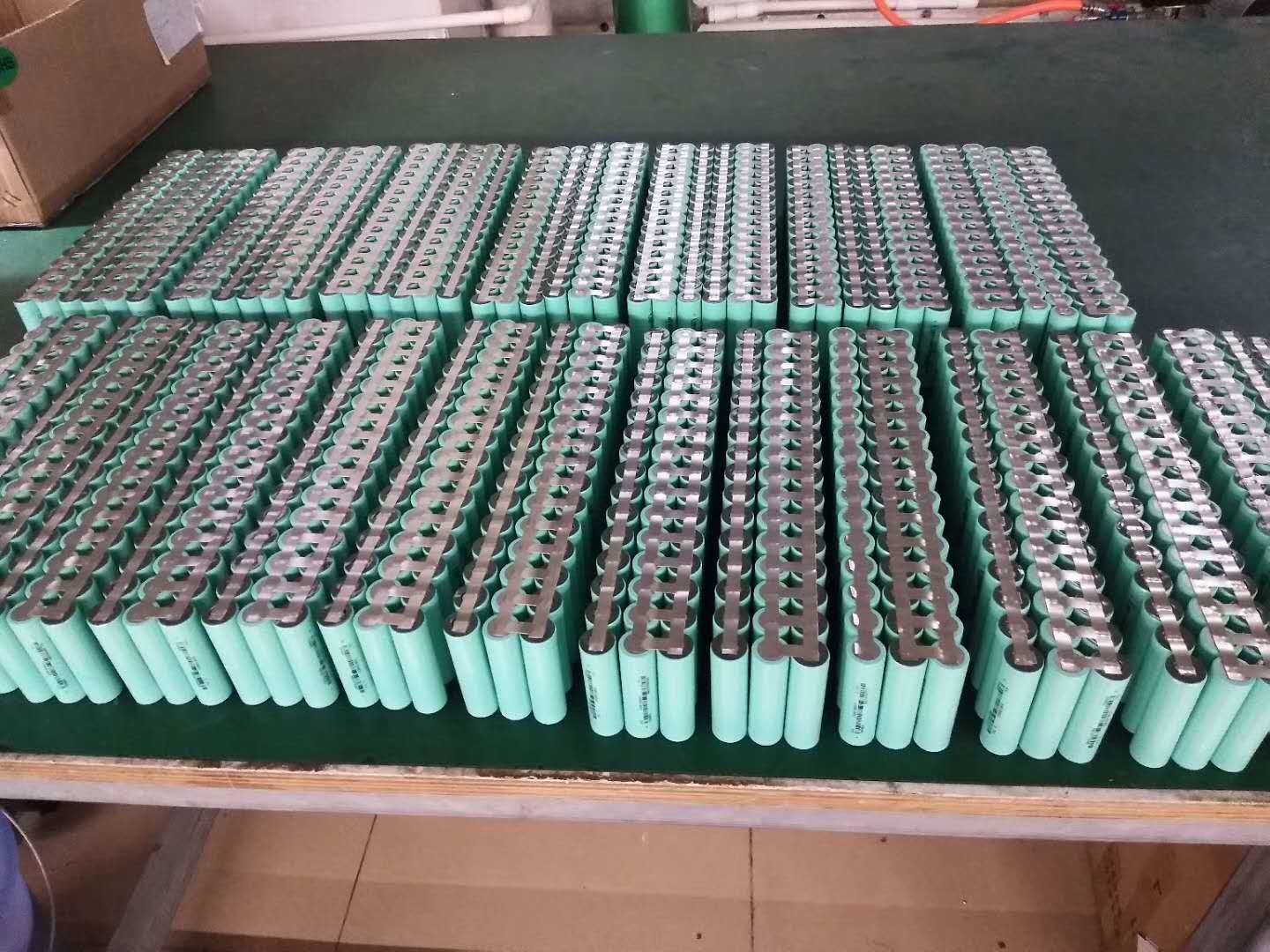

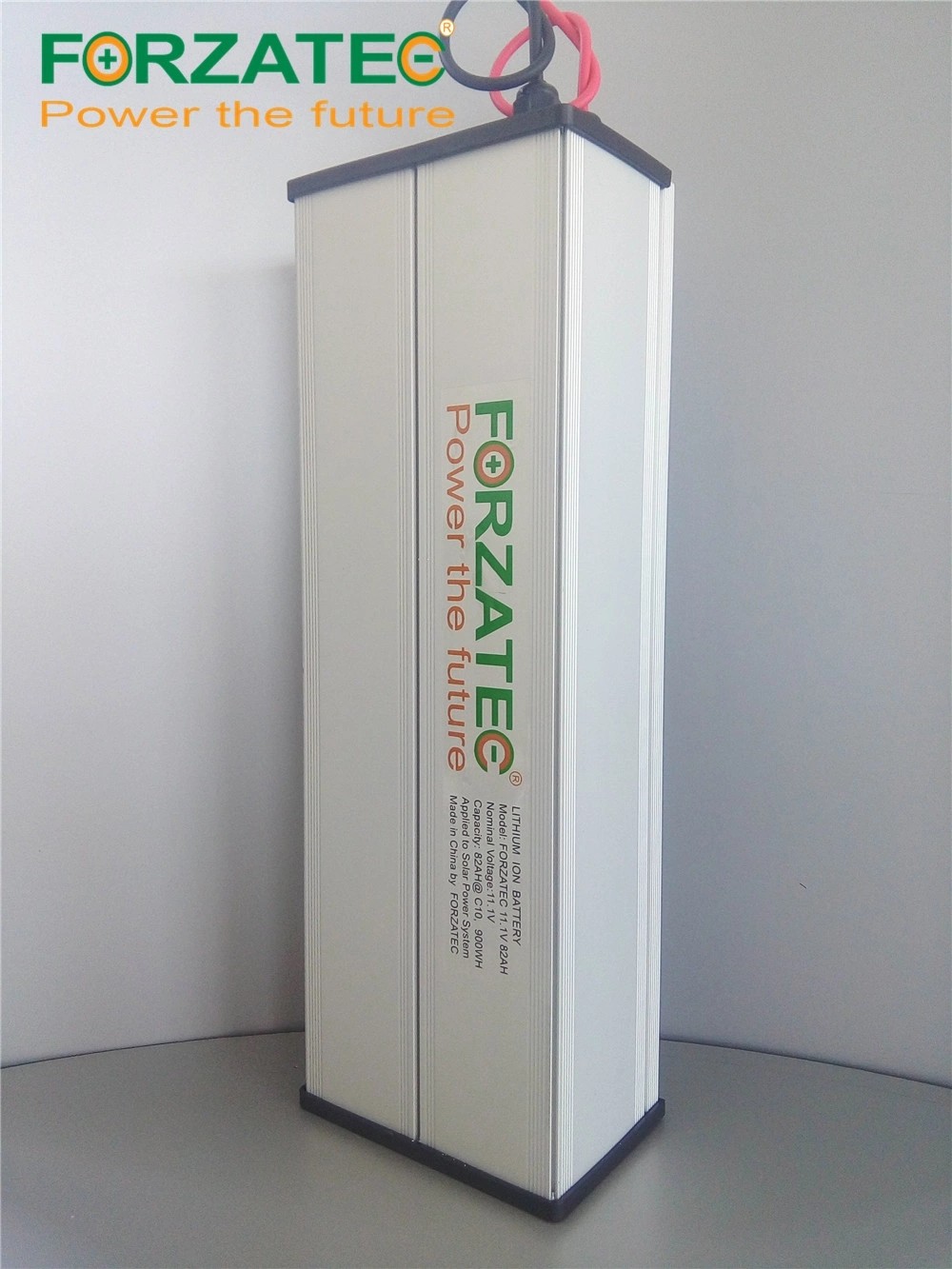

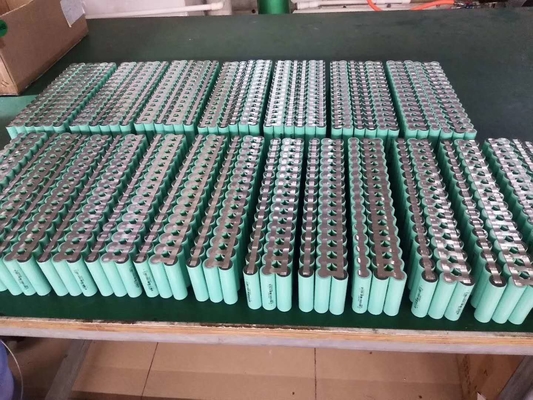

12V75Ah LMO Lithium Battery has adapted high-density 18650 cylindrical cells with protection circuit board implemented to well monitor overcharge, overdischarge, temperature, and other potential factors which could influence the normall functioning of the battery packs. The aluminum batter housing structure ensure strong machenical endurance and maintain all-around water risistance. And more importantly, it makes installation on the light pole much easier than the traditional way that takes a lot of labor work to bury battery underground.
This specification is compiled referring to technology standards of GB/T18287-2000.UL1642 and IEC61960-1:2000.
Warning
Don`t weld the battery directly, no opening of the battery.
In order to avoid short circuit, please don`t put together the battery with metal stuff, such as necklaces, coins, barrettes, screws in bag or pocket, no connecting directly the [+" and[-" together with metal or other conductive materials.
No knocking, throwing or trampling the battery, not to mention put the battery in washing machines or high compress vessels.
Please keep the battery far away from heat source, such as fire, heater; don not store or use the battery under strong sunshine or high ambient temperature more than 60℃,otherwise the battery will set fire or be overheated or failure.
Please don not damp the battery or put it into water; please keep the battery dry and be of low temperature in storage.
During the period of using, testing or storage, if the battery has been found got hot, expiring abnormal odors, changed color, transformed or in other unusual states, please stop relative handling at once, isolate the battery and keep away from it.
If the battery leaked and the electrolyte split into your eye, don`t knead you eye, flush it with clean water at once, go to see a doctor in the case of be serious; if electrolyte spattered on your skin or clothes, please flush it with clean water.
This specification gives the technical parameters and testing standard provided by FORZATEC CO., LIMITED.
Kind & Type
Kind: Rechargeable Lithium-ion Battery
Type:FORZATEC-12V-75AH
Reference Standards
LMO Lithium Battery has outstanding all-around performance and especially boasts for its power density. There is a trend towards LMO as the power system can be built up much more economically. The three active materials of nickel, manganese and cobalt can easily be blended to suit a wide range of applications that need frequently cycling.
FORZATEC configures the 12V battery packs by 3 series of 3.6V/3.7V NMC cells and PCB with optimized dimensions and adequate electrical output as the customers require.
