| Place of Origin: | CHINA |
|---|---|
| Brand Name: | FORZATEC |
| Certification: | CE&ROHS |
| Model Number: | FT-SDN-40W |
| Minimum Order Quantity: | 200 |
| Packaging Details: | Carton + Pallet |
| Delivery Time: | 15 DAYS |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10,000 PER MONTH |
| Model: | FT-SDN-40W | System Voltage: | 12V24V Auto(7V～34V) |
|---|---|---|---|
| Output Power: | 40W | Output Voltage: | (Vin+5V)～66V |
| Max Output Current: | 2.0A | Weight: | 0.14 Kg |
| Appearance Size:: | 88×53×21mm | ||
| High Light: | solar power charge controller,battery charge controller |
||

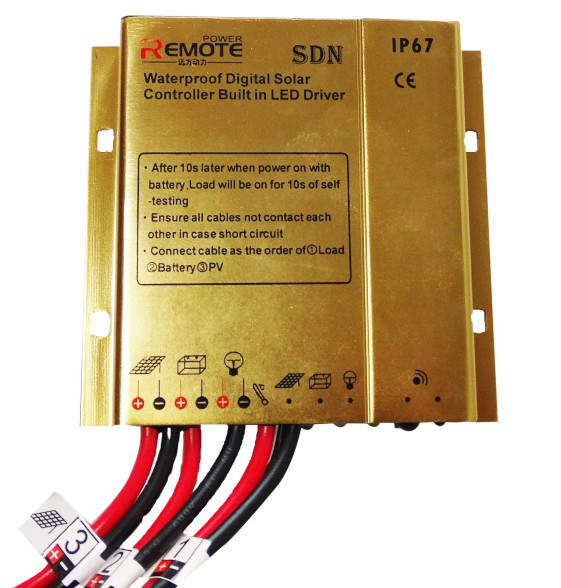

1.1 Product Description
SDN Series, is a combination of solar charge controller and LED constant current
driver,which is widely used in solar street LED light and solar garden light system.With
feature of high reliability, high efficiency, high-precision, easy to install, adapt to different
environment and high/low temperature applications.
1.2 Main Features
6 time Periods Load control.
-40 ~ 85 ℃ full temperature range at full power with high precision , high efficiency, low power consumption
Efficient pulse width modulation three -stage charging.
IP67 waterproof design.
Intelligent systems for environmental monitoring, automatic adjustment of power , effectively extending the battery life.

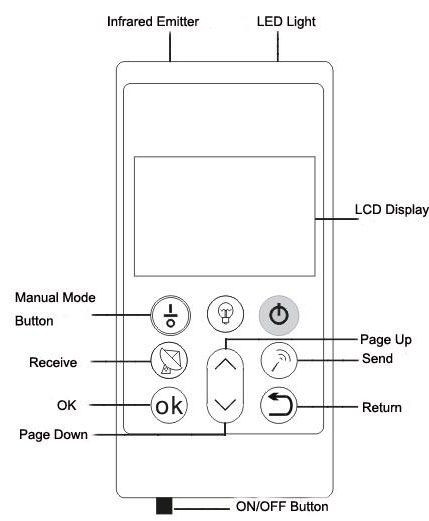

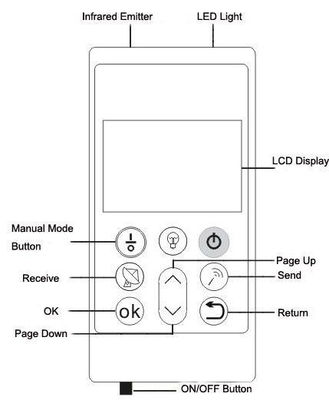

Parameter Adaptive,Multi-function protection,IR control.
1.3 Parameters
| Model | FT-SDN-40W |
| System voltage | 12V24V auto(7V～34V) |
| Output power | 40W |
| Output voltage | (Vin+5V)～66V |
| Output waveform | ≤600mV |
| Max output current | 2.0A |
| Output Constant current precision | <3%(typical),above 80% rated power<1% |
| Typical efficiency | 92～96% |
| Work temperature | -35～55℃ (-40～90℃ customized) |
| No load current | ≤5～18mA |
| Temperature compensation | -5mv/℃/2V(charge voltage,over discharge voltage compensation) |
| Control mode | PWM charge mode Output Constant Current:PWM+smart High Frequency Modulation software |
| Weight | 0.14 kg |

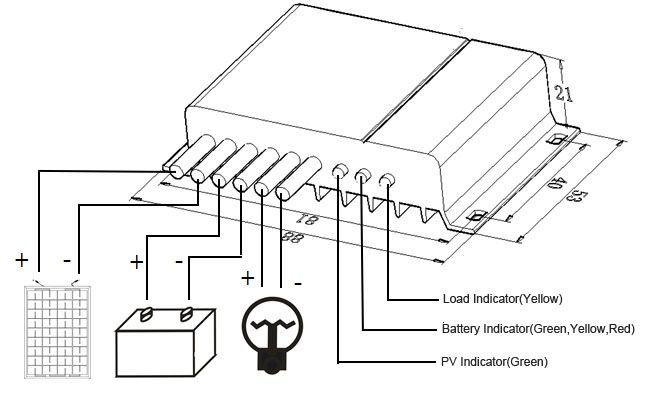

1.4 Dimension
Appearance size: 88×53×21mm
Install hole size: 81×40mm
Diameter of the installing hole:Ф3
1.5 Smart mode (Selectable)
Mode 1: According to the battery charge and discharge status ,Output Power(Current)
will automatically optimize automatically to extend the LED lamp working hours.
① When the battery capacity is low, the controller will follow the diagram of "1.1 Load
Current Output Curve", reduce power output current to extent the LED lamp working
hours.
②In winter, when weak sunlight makes the charging less, equipment will enter into
half-power mode automatically.
Mode 2: Rely on external infrared and sound sensors to control load power
This mode need to connect an external IR sensor or sound sensor to sense whether
someone pass.When nobody passes, Output Power will reduce to the lowest power
working to save energy.(this mode is reserved)
1.6 History Record
1, Record the working days
2, Record the over discharge times of recent 16 days
