100W Output Power Solar Power Controller FT-SDN-100W Install Hole Size 81*40mm

Basic Information
Place of Origin: CHINA
Brand Name: FORZATEC
Certification: CE&ROHS
Model Number: FT-SDN-100W
Minimum Order Quantity: 200
Packaging Details: Carton + Pallet
Delivery Time: 15 DAYS
Payment Terms: L/C, T/T
Supply Ability: 10,000 PER MONTH
Detail Information
Model: FT-SDN-60W System Voltage: 24V (18V~34V)
Output Power: 100W Output Voltage: (Vin+5V)~66V
Output Waveform: ≤600mV Max Output Current: 3.0A
High Light:

battery charge controller

,

solar system controller


Product Description

1.1 Product Description
SDN Series, is a combination of solar charge controller and LED constant current
driver,which is widely used in solar street LED light and solar garden light system.With
feature of high reliability, high efficiency, high-precision, easy to install, adapt to different
environment and high/low temperature applications.



1.2 Main Features

6 time Periods Load control.
-40 ~ 85 ℃ full temperature range at full power with high precision , high efficiency, low power consumption
Efficient pulse width modulation three -stage charging.

IP67 waterproof design.

Intelligent systems for environmental monitoring, automatic adjustment of power , effectively extending the battery life.

Parameter Adaptive,Multi-function protection,IR control.



1.3 Parameters

Model FT-SDN-60W
System voltage 24V (18V~34V)
Output power 100W
Output voltage (Vin+5V)~66V
Output waveform ≤600mV
Max output current 3.0A
Output Constant current precision <3%(typical),above 80% rated power<1%
Typical efficiency 92~96%
Work temperature -35~55℃ (-40~90℃ customized)
No load current ≤5~18mA
Temperature compensation -5mv/℃/2V(charge voltage,over discharge voltage compensation)
Control mode PWM charge mode
Output Constant Current:PWM+smart High Frequency Modulation software
Weight 0.14 kg



1.4 Dimension

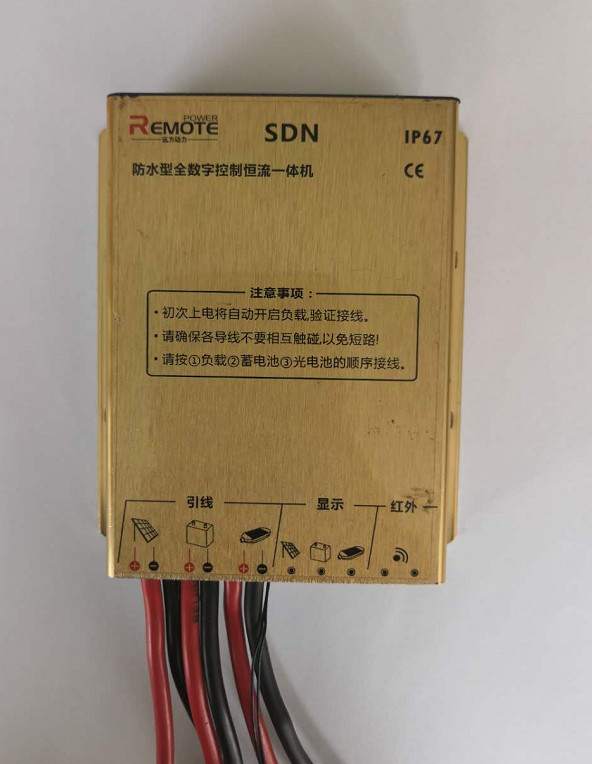

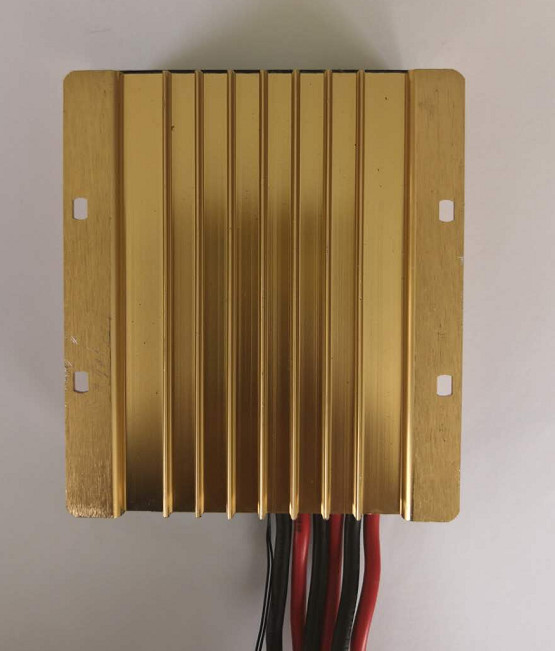

Appearance size: 88×53×21mm
Install hole size: 81×40mm
Diameter of the installing hole:Ф3100W Output Power Solar Power Controller FT-SDN-100W Install Hole Size 81*40mm 0



1.5 Smart mode (Selectable)

Mode 1: According to the battery charge and discharge status ,Output Power(Current)
will automatically optimize automatically to extend the LED lamp working hours.
① When the battery capacity is low, the controller will follow the diagram of "1.1 Load
Current Output Curve", reduce power output current to extent the LED lamp working
hours.
② In winter, when weak sunlight makes the charging less, equipment will enter into
half-power mode automatically.100W Output Power Solar Power Controller FT-SDN-100W Install Hole Size 81*40mm 1



Mode 2: Rely on external infrared and sound sensors to control load power
This mode need to connect an external IR sensor or sound sensor to sense whether
someone pass.When nobody passes, Output Power will reduce to the lowest power
working to save energy.(this mode is reserved)



1.6 History Record
1, Record the working days
2, Record the over discharge times of recent 16 days



100W Output Power Solar Power Controller FT-SDN-100W Install Hole Size 81*40mm 2
