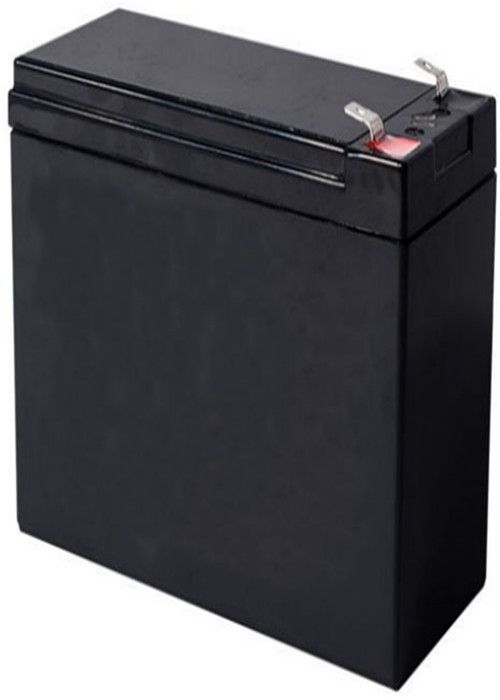

76.8Wh Energy Lifepo4 Lithium Ion Battery FT-32LFP-12.8V6AH Free Maintenance

Basic Information
Place of Origin: CHINA
Brand Name: FORZATEC
Certification: CE&ROHS
Model Number: FT-32LFP-12.8V6AH
Minimum Order Quantity: 100
Packaging Details: CARTON AND PALLETS
Delivery Time: 15 DAYS
Payment Terms: L/C, T/T
Supply Ability: 10,000 PER MONTHS
Detail Information
Nominal Voltage: 12.8V Nominal Capacity: 6Ah@0.2C
Energy: 76.8Wh Internal Resistance: 70≤mΩ
Dimension(L*W*H*TH): 151*65*94*100mm Weight: Approx. 1.05Kg
High Light:

lifepo4 lithium battery

,

lifepo4 rechargeable battery


Product Description

FT-32LFP-12.8V6AH UPS Solar &Wind power system Golf Cart Solar Strret LED Lighting

Features

◆ Using the technology of lithium iron phosphate cell, superior safety, thousands of cycles, 100%DOD, under normal conditions

◆ Built-in automatic protection for over-charge, over discharge, over current and over temperature

◆ Maintenance free

◆ Internal cell balancing

◆ Lighter weight: About 40% ~50% of the weight of a comparable lead acid battery.

◆ Can be charged using most standard lead-acid charges (set)

◆ Wider temperature range:-20℃~60℃

Application

◆ UPS

◆ Solar &Wind power system

◆ Golf Cart

◆ Electric vehicle , E-bike, E-rickshaw e.g.

◆Lighting

General Specifications







Electrical Characteristics

Nominal Voltage 12.8V
Nominal Capacity 6Ah@0.2C
Energy 76.8Wh
Internal Resistance 70≤mΩ
Cycle Life >2000 Cycles @ 0.2C Charge/Discharge at 100%DOD,End of Life 70% Capacity.
Months Self Discharge ≤3.5% per month at 25℃

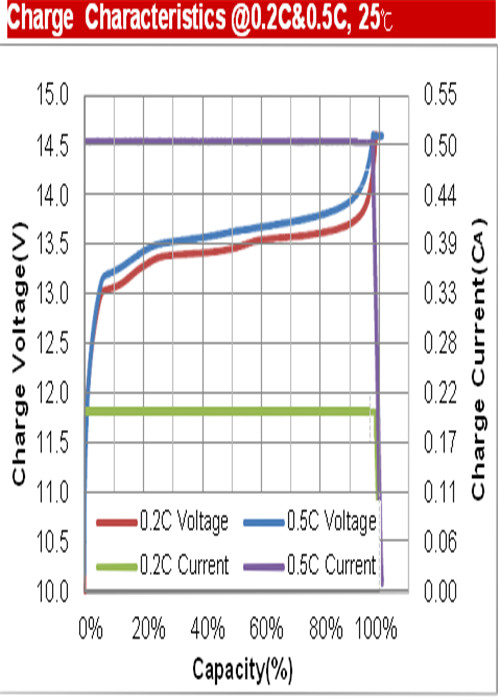

Standard Charge

Charge Voltage 14.6±0.2V



Charge Mode(CC/CV)

At 0℃~45℃ temperature, charged to 14.6V at a constant current of 0.2C5A, and then,changed continuously with constant voltage of 14.6V until the current was not more than 0.02C5A.
Charger Current 1.2A
Max.Charge Current 3A

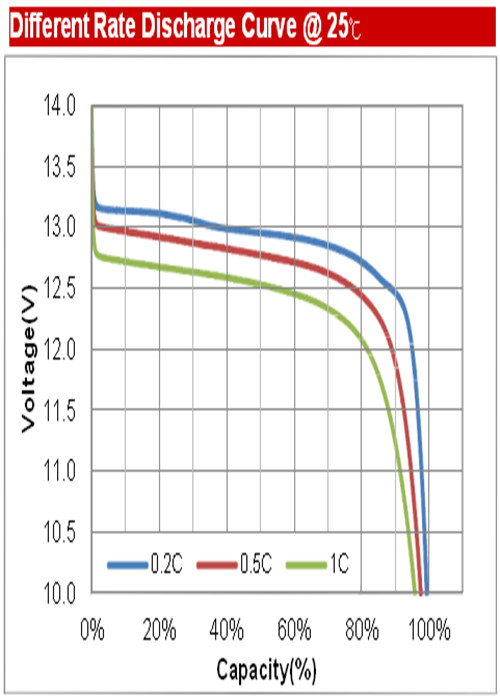

Standard Discharge

Discharge Current 1.2A
Max. Continuous Current 6A
Max.Pulse Current 20A(<3S)
Disxcharge Cut-off Voltage 10.0V





Environmental

Charge Temperature 0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
Disxcharge Temperature -20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity
Storage Temperature 0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
Water Dust Resistance IP55





Mechanical

Cell & Method IFR32700 N60,4S1P
Plastic Case ABS

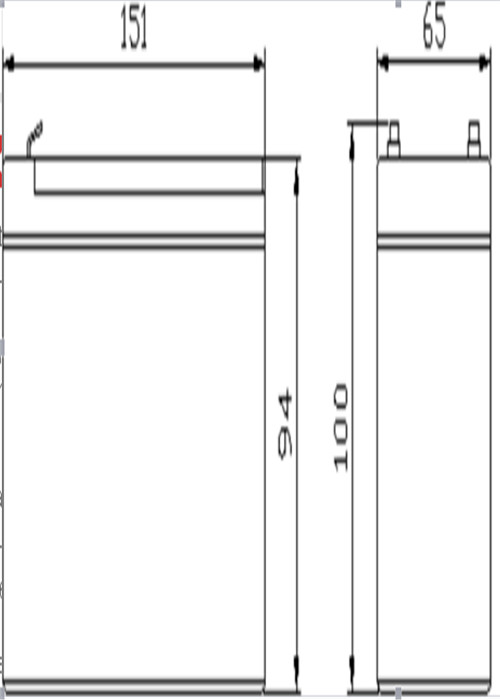

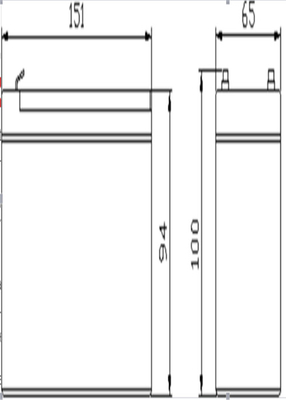

Dimension(L*W*H*TH) 151*65*94*100mm
Weight Approx. 1.05Kg

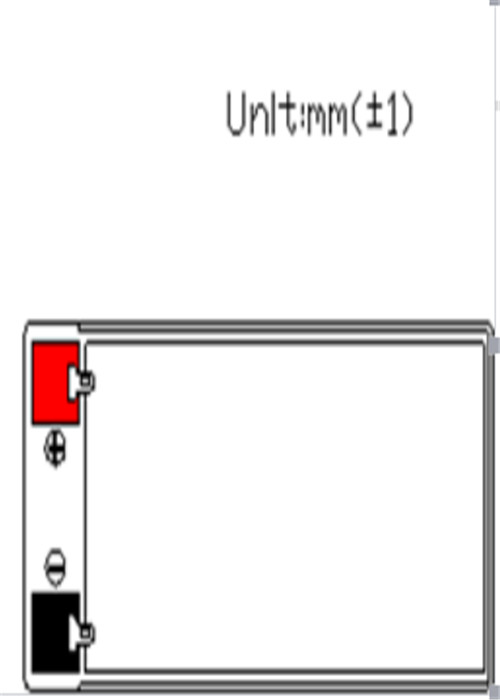

Terminal F2

76.8Wh Energy Lifepo4 Lithium Ion Battery FT-32LFP-12.8V6AH Free Maintenance 076.8Wh Energy Lifepo4 Lithium Ion Battery FT-32LFP-12.8V6AH Free Maintenance 176.8Wh Energy Lifepo4 Lithium Ion Battery FT-32LFP-12.8V6AH Free Maintenance 2
