6.7kg Weight Lifepo4 Battery Pack FT-32LFP-12.8V54AH Internal Cell Balancing

Basic Information
Place of Origin: CHINA
Brand Name: FORZATEC
Certification: CE&ROHS
Model Number: FT-32LFP-12.8V54AH
Minimum Order Quantity: 100
Packaging Details: CARTON AND PALLETS
Delivery Time: 15 DAYS
Payment Terms: L/C, T/T
Supply Ability: 10,000 PER MONTHS
Detail Information
Nominal Voltage: 12.8V Nominal Capacity: 54Ah@0.2C
Energy: 691.2Wh Internal Resistance: 50≤mΩ
Dimension(L*W*H*TH): 229*138*212*217mm Weight: Approx. 6.7Kg
High Light:

lifepo4 rechargeable battery

,

lifepo4 battery pack


Product Description

FT-32LFP-12.8V54AH UPS Solar &Wind power system Golf Cart Solar Strret LED Lighting

Features

◆ Using the technology of lithium iron phosphate cell, superior safety, thousands of cycles, 100%DOD, under normal conditions

◆ Built-in automatic protection for over-charge, over discharge, over current and over temperature

◆ Maintenance free

◆ Internal cell balancing

◆ Lighter weight: About 40% ~50% of the weight of a comparable lead acid battery.

◆ Can be charged using most standard lead-acid charges (set)

◆ Wider temperature range:-20℃~60℃

Application

◆ UPS

◆ Solar &Wind power system

◆ Golf Cart

◆ Electric vehicle , E-bike, E-rickshaw e.g.

◆Lighting

General Specifications







Electrical Characteristics

Nominal Voltage 12.8V
Nominal Capacity 54Ah@0.2C
Energy 691.2Wh
Internal Resistance 50≤mΩ
Cycle Life >2000 Cycles @ 0.2C Charge/Discharge at 100%DOD,End of Life 70% Capacity.
Months Self Discharge ≤3.5% per month at 25℃







Standard Charge

Charge Voltage 14.6±0.2V



Charge Mode(CC/CV)

At 0℃~45℃ temperature, charged to 14.6V at a constant current of 0.2C5A, and then,changed continuously with constant voltage of 14.6V until the current was not more than 0.02C5A.
Charger Current 10.8A
Max.Charge Current 27A





Standard Discharge

Discharge Current 10.8A
Max. Continuous Current 54A
Max.Pulse Current 120A(<3S)
Disxcharge Cut-off Voltage 10.0V





Environmental

Charge Temperature 0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
Disxcharge Temperature -20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity
Storage Temperature 0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
Water Dust Resistance IP55





Mechanical

Cell & Method IFR32700 N60,4S9P
Plastic Case ABS

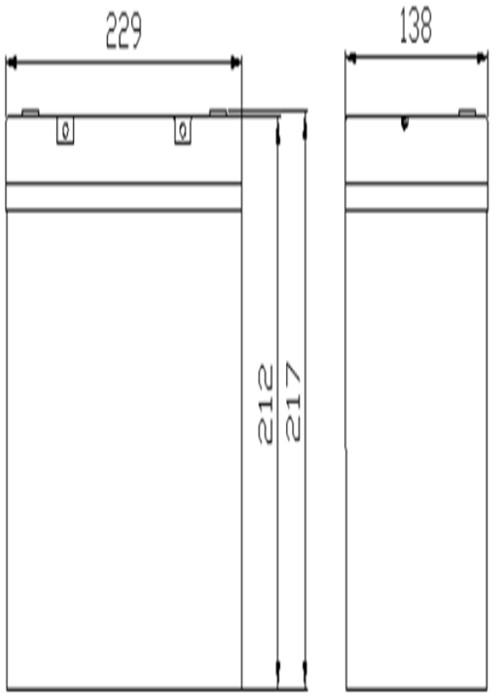

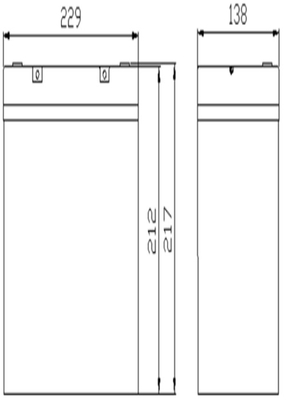

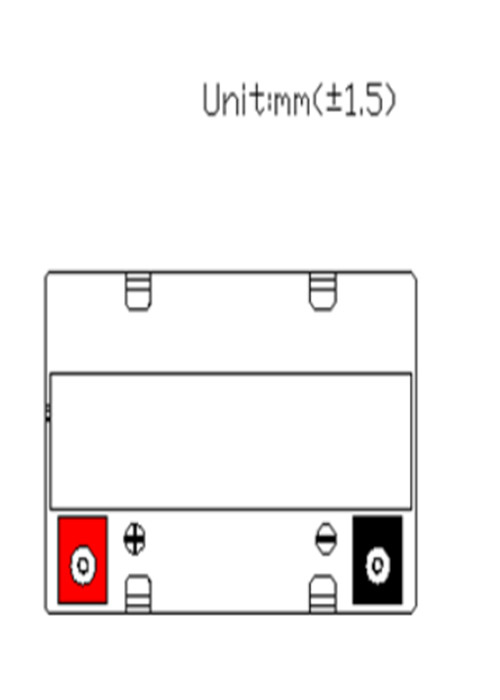

Dimension(L*W*H*TH) 229*138*212*217mm
Weight Approx. 6.7Kg
Terminal M6
