| Place of Origin: | CHINA |
|---|---|
| Brand Name: | FORZATEC |
| Certification: | CE&ROHS |
| Model Number: | FT-32LFP-12.8V84AH |
| Minimum Order Quantity: | 100 |
| Packaging Details: | CARTON AND PALLETS |
| Delivery Time: | 15 DAYS |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10,000 PER MONTHS |
| Nominal Voltage: | 12.8V | Nominal Capacity: | 84Ah@0.2C |
|---|---|---|---|
| Energy: | 1075.2Wh | Internal Resistance: | 45≤mΩ |
| Dimension(L*W*H*TH): | 260*169*213*218mm | Weight: | Approx. 10.2Kg |
| High Light: | lifepo4 lithium battery,lifepo4 battery pack |
||
FT-32LFP-12.8V84AH UPS Solar &Wind power system Golf Cart Solar Strret LED Lighting
General Specifications
|
Electrical Characteristics |
Nominal Voltage | 12.8V |
| Nominal Capacity | 84Ah@0.2C | |
| Energy | 1075.2Wh | |
| Internal Resistance | 45≤mΩ | |
| Cycle Life | >2000 Cycles @ 0.2C Charge/Discharge at 100%DOD,End of Life 70% Capacity. | |
| Months Self Discharge | ≤3.5% per month at 25℃ | |
|
Standard Charge |
Charge Voltage | 14.6±0.2V |
|
Charge Mode(CC/CV) |
At 0℃~45℃ temperature, charged to 14.6V at a constant current of 0.2C5A, and then,changed continuously with constant voltage of 14.6V until the current was not more than 0.02C5A. | |
| Charger Current | 16.8A | |
| Max.Charge Current | 42A | |
|
Standard Discharge |
Discharge Current | 16.8A |
| Max. Continuous Current | 84A | |
| Max.Pulse Current | 120A(<3S) | |
| Disxcharge Cut-off Voltage | 10.0V | |
|
Environmental |
Charge Temperature | 0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity |
| Disxcharge Temperature | -20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity | |
| Storage Temperature | 0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity | |
| Water Dust Resistance | IP55 | |
|
Mechanical |
Cell & Method | IFR32700 N60, 4S14P |
| Plastic Case | ABS | |

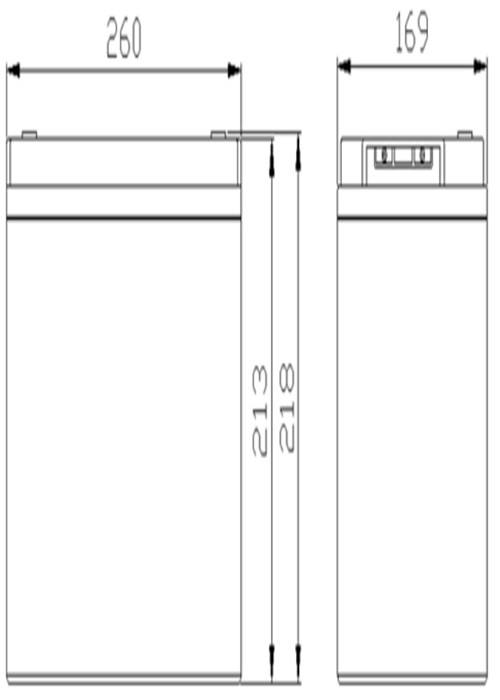

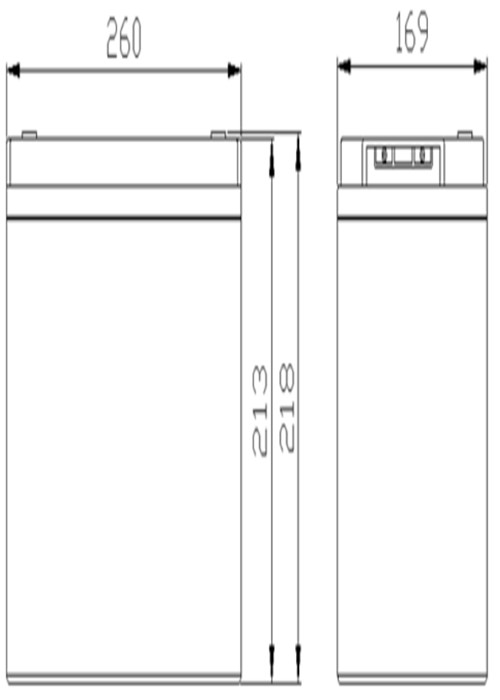

| Dimension(L*W*H*TH) | 260*169*213*218mm | |
| Weight | Approx. 10.2Kg | |
| Terminal | M8 |
