| Place of Origin: | CHINA |
|---|---|
| Brand Name: | FORZATEC |
| Certification: | CE&ROHS |
| Model Number: | FT-48V50Ah-LFP-3U |
| Minimum Order Quantity: | 10 |
| Packaging Details: | CARTON AND PALLETS |
| Delivery Time: | 15 DAYS |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1,000 PER MONTHS |
| Nominal Voltage: | 51.2V | Nominal Capacity: | 50Ah@0.2C |
|---|---|---|---|
| Dimension(L*W*H*TH): | (LxWxH) Mm 436x385x132.5 (482.6 + 1x420 + 1x132.5 + 1) | Weight: | 26 Kg |
| Discharge:: | - 10 ~ 55 ℃ | Storage:: | - 10 - 35 ℃ |
| High Light: | lifepo4 lithium battery,lifepo4 rechargeable battery |
||

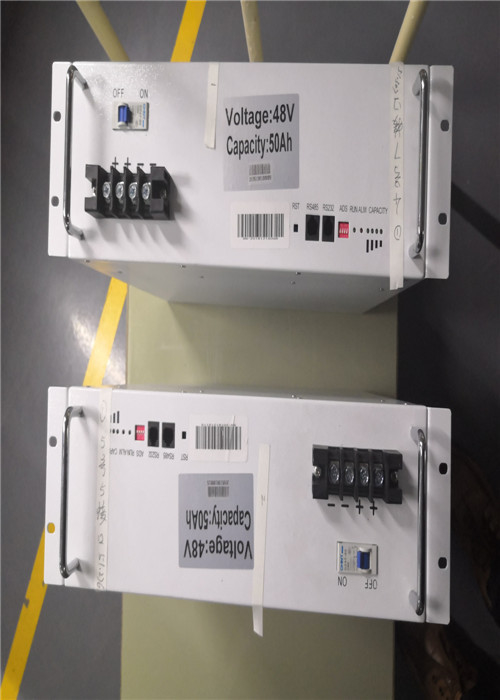

FT-48V50Ah-LFeLi-3U UPS Solar &Wind power system Golf Cart Solar Strret LED Lighting
◆Use safety
◆Low self-discharge rate
◆Excellent high temperature performance
◆High cycle times and long life
◆High energy density and conversion efficiency
◆Environmentally friendly, free of any heavy metals
◆BMS Battery Management System with High Performance
◆Easy to install, 19 inch cabinet or wall mounted
Items and Specifications
Model FT-48V50Ah-LFP-3U -A FT-48V50Ah-LFP-3U -B
Single cell battery IFR32700-6.0Ah-16S9P IFR32700-6.0Ah-15S9P
Nominal voltage 51.2V 48.0V
Nominal capacity (5HR) 50Ah 50Ah
Discharge termination voltage 44.8V 42.0V
Charging limit voltage 54.4V 51.0V
Maximum charging current 15A
Maximum sustained discharge current 50A
Charging Current Limitation Maximum 10A
Display function is not available by default (optional)
Communication function default RS485/R232 (optional)
Dry contacts default no (optional)
Reverse connection/storage function
Parallel function: maximum support for 16 groups of parallel connection
Operating Temperature "Charging: 0-45 degrees Celsius"
Discharge: - 10 ~ 55 C
Storage: - 10 - 35 C“
Cyclic life (> 2000 cycles (0.2C charge 80% DOD) or more than 5 years
IP Level IP30
Shell Material Sheet Metal (White/Black)

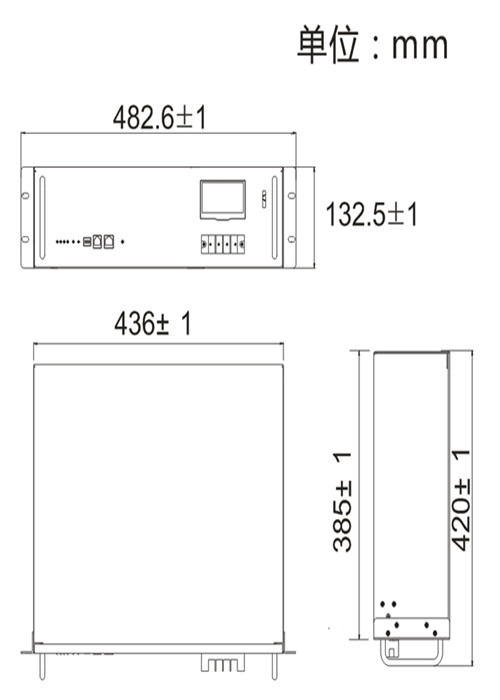

Dimension (LxWxH) mm 436x385x132.5 (482.6 + 1x420 + 1x132.5 + 1)
Weight: about 26 kg
