| Place of Origin: | CHINA |
|---|---|
| Brand Name: | FORZATEC |
| Certification: | CE&ROHS |
| Model Number: | FT-LD-48V20Ah-LFP |
| Minimum Order Quantity: | 50 |
| Packaging Details: | CARTON AND PALLETS |
| Delivery Time: | 15 DAYS |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1,000 PER MONTH |
| Nominal Voltage: | 48V | Nominal Capacity: | 20Ah |
|---|---|---|---|
| Dimension(L*W*H*TH): | 280*158*118 Mm | Discharge:: | - 10 ~ 55 ℃ |
| Storage:: | - 10 - 35 ℃ | Discharge Current: | 20A |
| High Light: | lifepo4 lithium battery,lifepo4 battery pack |
||

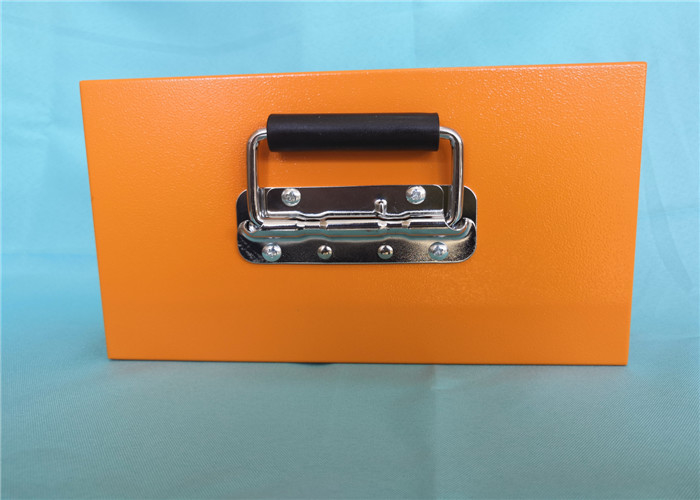

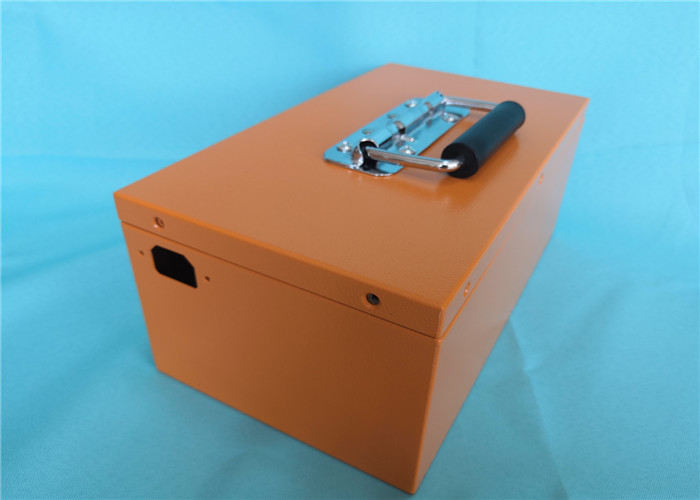

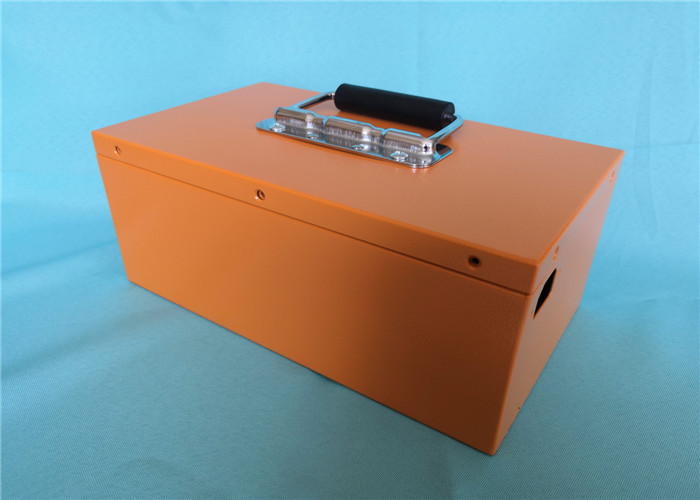

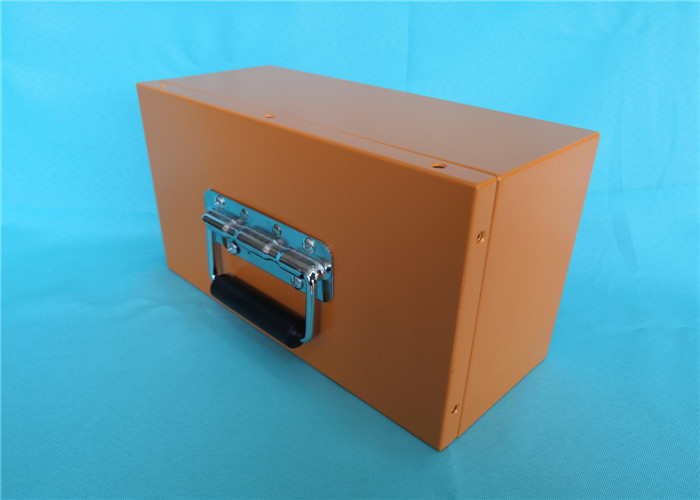

FT-LD-48V20Ah-LFP E-bike & E-scooter Lithium Battery for Electric Vehicle
| Details | Min. | Typ. | Max | Error | Unit | ||
| Battery Gas | 3.2V | ||||||
| Battery Link | 15S | ||||||
| Loop capability | |||||||
| Input Charging Voltage | 54.6 | ±1% | V | ||||
| Input Charging Current | ≤10 | A | |||||
| Output Discharging Voltage | 37.5 | ±1% | V | ||||
| Continuous Output Discharging Current | ≤20 | A | |||||
| Protection Parameters (for Individual Cell) | |||||||
| Over-Charge Voltage Protection (OVP) | 3.75 | ±0.025 | V | ||||
| Over-discharge protection delay time | 1.0 | ±0.5 | s | ||||
| Over-Charge Voltage Protection Release (OVPR) | 3.60 | ±0.05 | V | ||||
| Over-Discharge Voltage Protection (UVP) | 2.1 | ±0.1 | V | ||||
| Over-discharge protection delay time | 0.2 | ±0.05 | s | ||||
| Over-Discharge Voltage Protection Release (UVPR) | 2.3 | ±0.1 | V | ||||
| Over-DischargeProtection Release | Release load | ||||||
| Over-Current Discharge Protection (OCDP) | 75 | ±5 | A | ||||
| Over-Current Protection Delay Time (OCPDT) | 0.1 | ±0.05 | s | ||||
| Over-Current Discharge Protection Release | Release load | ||||||
| Short circuit current protection | Enable | ||||||
| Short circuit current protection delay time | 200 | uS | |||||
| Short circuit protection Release | Release load | ||||||
| Idle mode | ≤60 | uA | |||||
| Main loop electrify resistance MOS-RDS | ≤40 | mΩ | |||||
| PCBA Size | 70(±1)×52(±1)×<10 | mm | |||||
|
Working Voltage |
rated Voltage | 48.0V |
| Voltage range | 37.5V--54.6V | |
| Core combination mode | IFR32700-6.0AH/15S2P | |
| Nominal Capacity (Ah) | 18AH | |
| Battery Energy | 864Wh | |
| Working Temperature: | : Charging:0℃ ~ 55℃ Discharge :-20℃ ~ 60℃ | |
| Continuous charging current (A) | ≤20A(0.2C) | |
| Continuous discharge current (A) | ≤20A(0.2C) | |
| Storage Temperature/Humidity | -20 ~ 60℃ Humidity RH≤95% | |
| Weight (kg) | about 9kg | |
| Output | Charge and Discharge Port: Pingzi Socket | |
| Cycle life | >1500 (@0.2CA 70%DOD) | |
| Protection Function | Overcharge Protection; Overdischarge Protection; Overcurrent Protection; Short Circuit Protection | |
| Internal resistance (internal resistance at discharge end) | ≤100mΩ | |
| Out-of-factory voltage | ≥45V | |
| Profile Size(MAX) | L*W*H=(280±1)X(158±1)X(118±1)mm | |
| Shell Material | Iron Box Baking Paint | |
