| Place of Origin: | CHINA |
|---|---|
| Brand Name: | FORZATEC |
| Certification: | CE&ROHS |
| Model Number: | FT-BR1225-L1 |
| Minimum Order Quantity: | 2000pcs |
| Packaging Details: | 2000pcs/Carton |
| Delivery Time: | 15 days |
| Payment Terms: | T/T |
| Supply Ability: | Above 1000,000pcs/Month |
| Electrochemical System: | Li-CFx | Voltage: | 3V |
|---|---|---|---|
| Capacity: | 50mAh | Working Temp: | -20℃～85℃ |
| Storage Temp: | -20℃～40℃ | Discharging Current: | 0.1mA |
| Weigh: | 1.0g | ||
| High Light: | 3v button battery,cr2032 button battery |
||

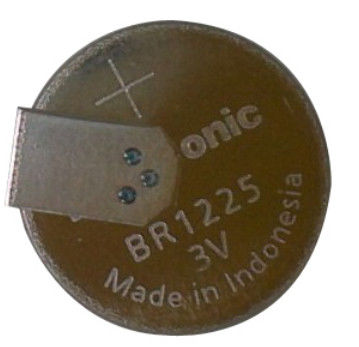

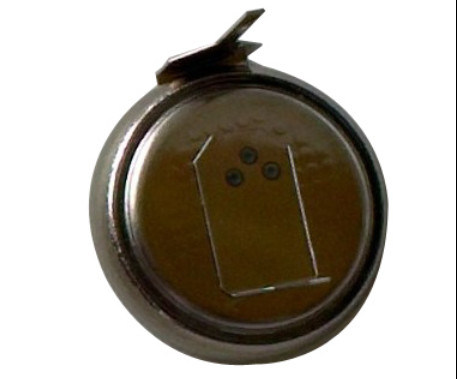

FT-BR1225-L1 3V 50mAh Li-CFx Laser Welded With Pins Button Battery
Specifications:
| Electrochemical system | Li-CFx |
| Voltage/V | 3 |
| Capacity/mAh | 50 |
| Working Temp/℃ | -20～85 |
| Storage Temp/℃ | -20～40 |
| Discharging current/mA | 0.1 |
| Weight/g | 1.0 |
Description:
1. Put the “+,-“ pins in the dedicated welding mold then put the battery in it and close the mold.
2. Put the mold on the laser welding table and press the button to start welding.First welding the “+”
Applications:
1. Remote series:TV,Air conditioner,Toys,E-bike keys,Car keys,Entrance guard,ETC cards etc.
2. Digital series:Cameras,E-dictionery,Clocks,Mainboard,Digital label etc.
3. Dynamic password equipments:Bank OTP,Game card reader etc.
4. Instrument series:Multimeter,Distance measuring tool,Laser marking instrument,IC card gas meter,Water meter,Electricity meter,Electronic scale etc.
5. Medical equipment:Blood pressure meter,Blood glucose meter,Facial massage equipments,Electrical beauty apparatus etc.
6. LED lighting series:Candle light,Flash light,E-greeting card etc.
7. Far infrared alarm such as Wire-less phone,Smoke alarm and Telephone(Incoming call displayer) etc.
Competitive Advantage:
1.Using nickelage stainless pins with head Tin-plated,it’s fast in Tin plating and without rosin connection.
2.Using laser welding technology so the connection is strong and without harm to battery.
3.Using battery sorter machine to make sure the delivered batteries in good electrical properties.
4. Battery voltage reaches 3V,one more time higher than Zn-Mn,SR batteries and without heavy metal
