| Place of Origin: | CHINA |
|---|---|
| Brand Name: | FORZATEC |
| Certification: | CE ROHS |
| Model Number: | FT-LFP-12-75 |
| Minimum Order Quantity: | 50 PCS |
| Packaging Details: | CARTON AND PALLETS |
| Delivery Time: | 15 DAYS UPON ORDER |
| Payment Terms: | T/T |
| Supply Ability: | 100K PER MONTH |
| Battery Type: | Lifepo4 | Nominal Voltage: | 12.8V |
|---|---|---|---|
| Nominal Capacity: | ≥75Ah (Test Condition @ 0.3C, 25°C) | Charge Cut-off Voltage: | 14.6V |
| Discharge Cut-off Voltage: | 10.8V | Self-discharge: | < 3% Per Month |

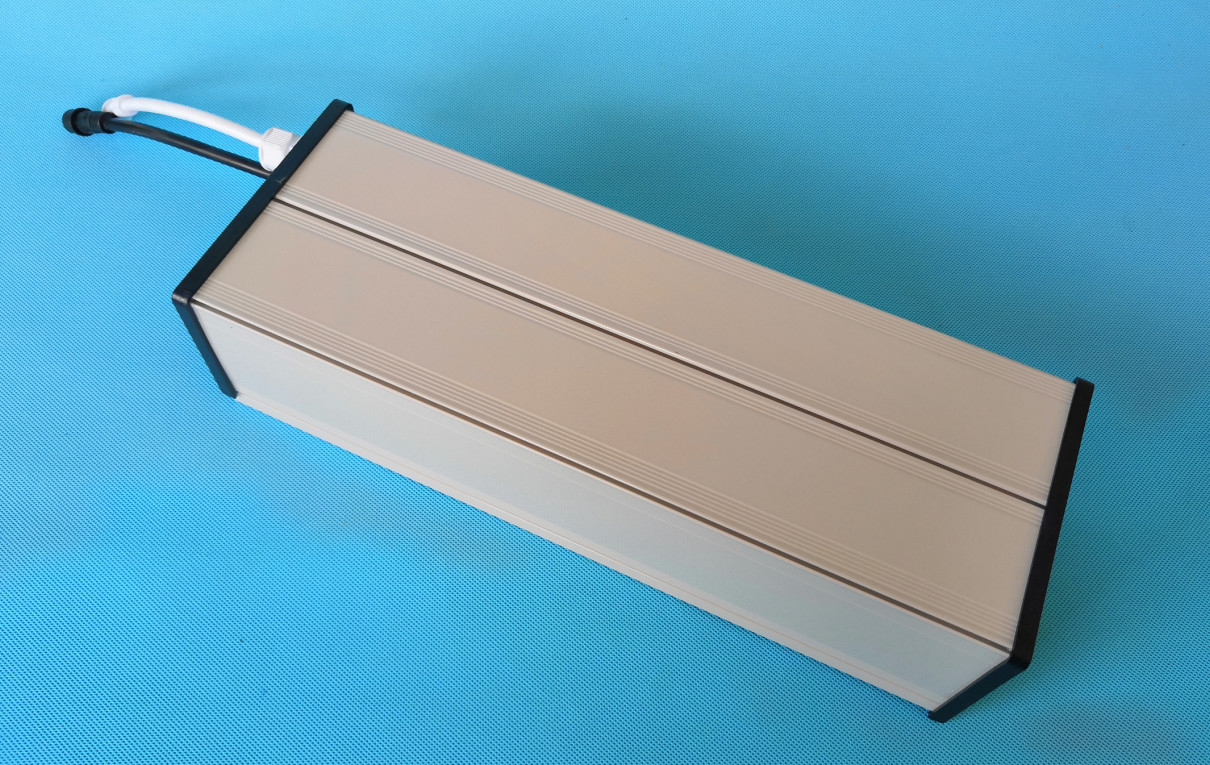

| Battery Packing: | Aluminum Box | Battery Pack Weight: | 9±1kg |
| Battery Pack Size: | L148mm × W115mm × H465mm | ||
| High Light: | lifepo4 lithium battery,lifepo4 battery pack |
||
----Wider working temperature .

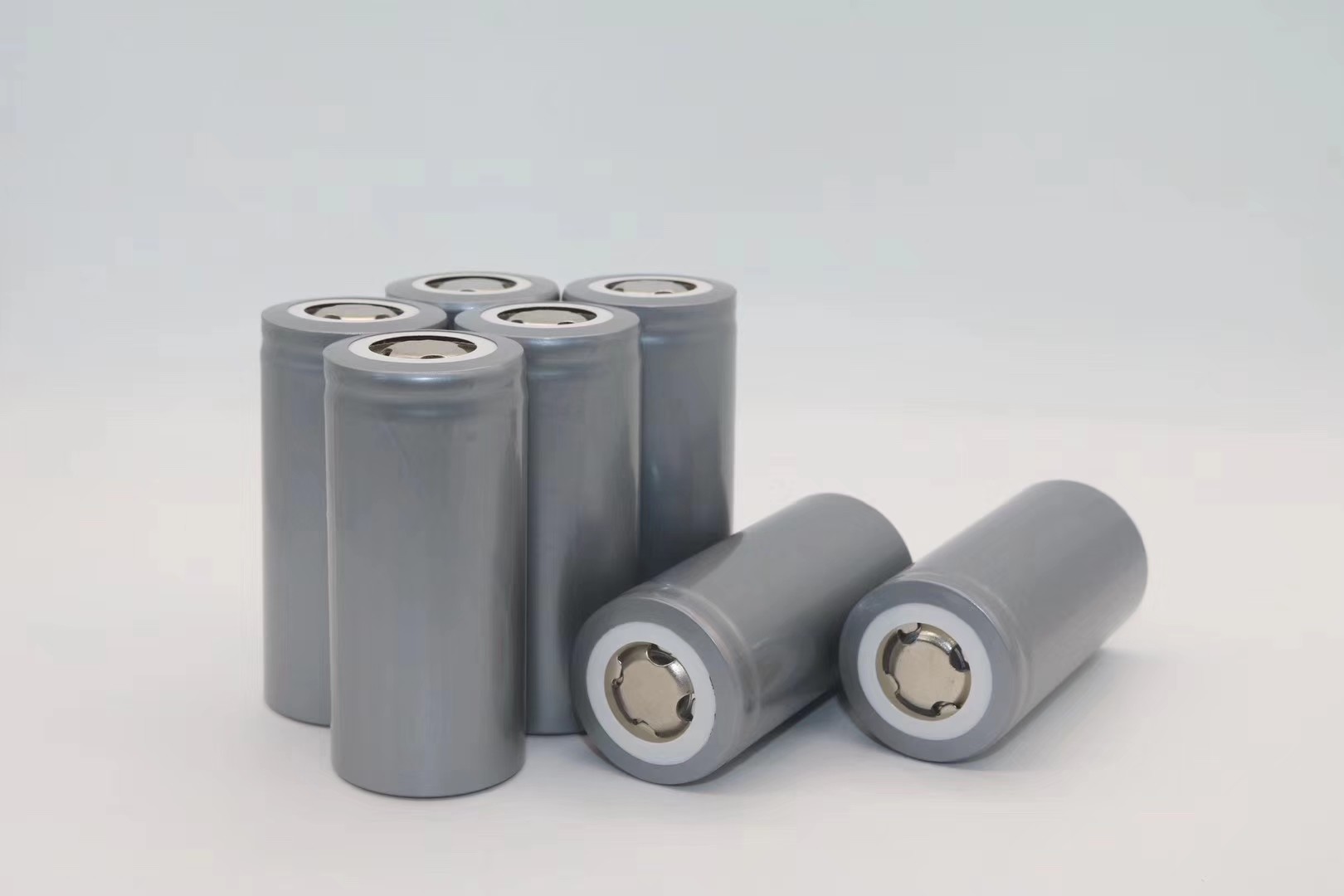

LiFePO4 battery is one of the most mature and stable products. It is applied in digital products and lighting system. After nearly a decade of research and development and production breakthrough, the cylinder battery cell product has realized the combination of security, consistency, long life and low cost.
In addition, FORZATEC can also customize battery module provide customers with an overall solution ranging from battery cell to power system integration.
| Item | Specifications |
| Battery type | Lifepo4 |
| Nominal voltage | 12.8V |
| Nominal Capacity | ≥75Ah (Test condition @ 0.3C, 25°C) |
| Nominal charge current | 10A |
| Max charge current | 30A |
| Max continuous discharge current | 20A |
| Max pulse discharge current | 60A |
| Charge cut-off voltage | 14.6V |
| Discharge cut-off voltage | 10.8V |
| Standard charge and discharge method | CC and CV |
| Self-discharge | < 3% per month |

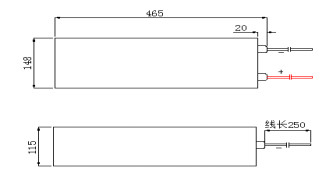

| Battery pack size | L148mm × W115mm × H465mm |
| Battery pack weight | 9±1kg |
| Battery packing | Aluminum box |
| Charge and discharge port | customized |
| Charge temperature range | -5 °C to 55°C |
| Discharge temperature range | 0 °C to 55°C |
| Storage temperature range | -20 °C to 55°C |
| Storage humidity | 25% to 85% |
| Charge and discharge port | customized |
| Charge and discharge wire diameter | customized |
| Charge and discharge wire length | customized |
